API 6A Ring Gaskets

Solid-metal ring-joint gaskets in R oval, R octagonal, RX and BX profiles for high-pressure wellhead, tree, flange and pressure-containing connections.

Request a Quote ↗

PRODUCT OVERVIEW

Function and selection basis

Ring-joint gaskets provide the metallic pressure seal between compatible ring-groove flanges. The gasket type, number, profile, material and hardness must match the mating flange standard, groove geometry, pressure duty, process fluid and temperature. R and RX types are associated with standard ring grooves, while BX is intended only for API 6BX grooves.

Main features

R style available in oval and octagonal cross-sections
RX pressure-energised profile developed from the R-style groove system
BX profile for high-pressure API 6BX flange and groove applications
BX configuration incorporates a pressure-balance hole
Solid-metal construction; welded ring construction is not accepted
Material options include soft iron, low-carbon steel, stainless steels and selected alloys
Dimensional tolerances, surface finish, material and hardness require confirmation against the approved standard and flange data

Typical applications

API 6A wellheads and Christmas trees
6B and 6BX flanged connections
Oil and gas pipeline flanges
High-pressure and high-temperature pressure-containing joints
Pressure vessels and related oilfield equipment where the approved groove is compatible

PROFILE RANGE

Ring-gasket configurations

R-Oval

Standard R ring with an oval cross-section for compatible standard ring grooves.

Reference range: R11–R79 and R92

R-Octagonal

Standard R ring with an octagonal cross-section. It may replace an oval R ring only where the mating modern octagonal groove is compatible.

Reference range: R11–R105

RX

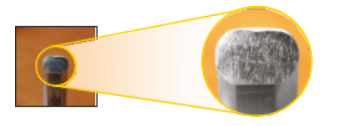

Pressure-energised adaptation of the R type, designed for the corresponding R-style groove. Interchangeability requires verification for the actual flange and duty.

Reference range: RX20–RX215

BX

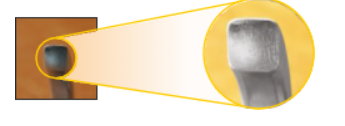

High-pressure ring for API 6BX flanges and grooves only, incorporating a pressure-balance hole.

Reference range: BX150–BX303

TECHNICAL DATA

Specification and supply basis

Applicable basis	API Specification 6A and ASME B16.20, as specified in the purchase requirement
Styles	R-Oval, R-Octagonal, RX and BX
Soft iron — maximum hardness	56 HRBW
Carbon and low-alloy steel — maximum hardness	68 HRBW
Stainless steel — maximum hardness	83 HRBW
Nickel alloy UNS N08825 — maximum hardness	92 HRBW
Typical material choices	Soft iron, low-carbon steel, SS 304, SS 316 and project-selected alloy grades
Identification	Ring type/number, material and required marking confirmed against the approved standard and order

PRODUCT IMAGES

Profiles, materials and supply examples

Polished silver R, RX and BX ring-joint gasket set

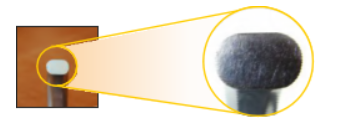

R-Oval ring-gasket cross-section reference

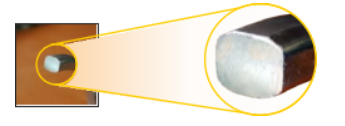

R-Octagonal ring-gasket cross-section reference

Supply positioning

Energy Equipment International supplies these parts against approved project requirements. API-monogram, manufacturing, testing and performance claims apply only when confirmed in the selected manufacturer’s approved certification and records.
