WELLHEAD EQUIPMENT

Casing Hangers

Name: Casing Hangers
Brand: Energy Equipment International

Casing hangers transfer suspended casing load into the casing-head bowl and, depending on the selected design, work with an integral or separate annulus packoff. The family page groups all four reference designs while retaining a detailed page for each type.

Request a quote ↗

Representative equipment image. Final configuration is project-specific.

FUNCTION & PURPOSE

What the equipment does

Suspends the selected casing string
Transfers casing load into the matching head bowl
Centres and supports casing at the wellhead
Provides or supports the annulus-sealing interface
Matches the casing OD, weight, grade and suspended load

AVAILABLE ARRANGEMENTS

Typical configurations

SB integrated automatic-sealing hanger
C21 non-automatic slip hanger with separate packoff
C22 integrated automatic-sealing hanger
W combined packoff, bowl and slips

PRODUCT TYPES & DESIGN OPTIONS

Products in this family.

Each type is reviewed as a separate technical selection. Compatibility, ratings, dimensions, seals and interfaces must be confirmed against the approved wellhead and completion design.

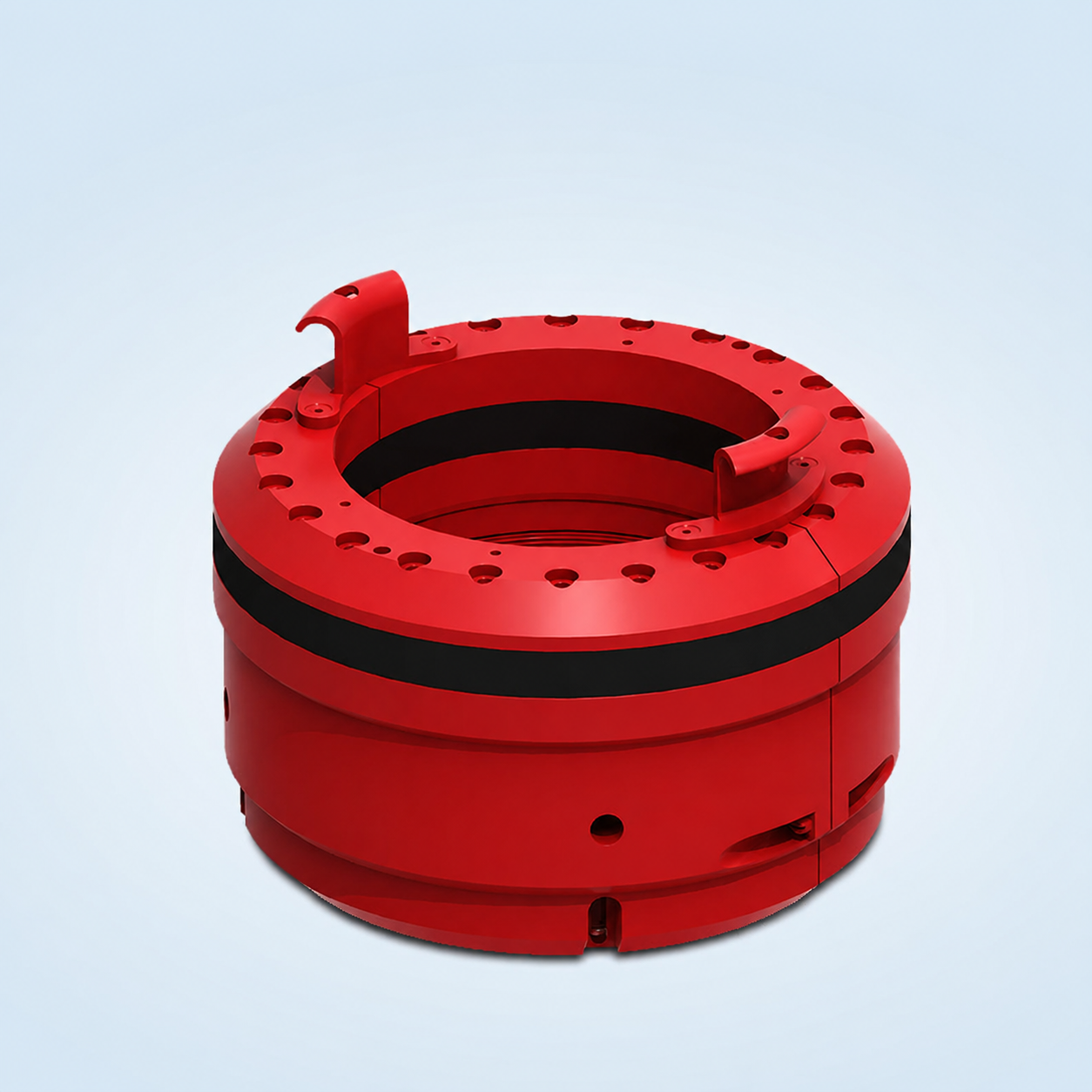

SB Casing Hanger

Single-unit weight-energised hanger for medium casing loads.

Integrated packoff, bowl and slips
Automatic seal energisation
Wrap-around installation

View complete technical page ↗

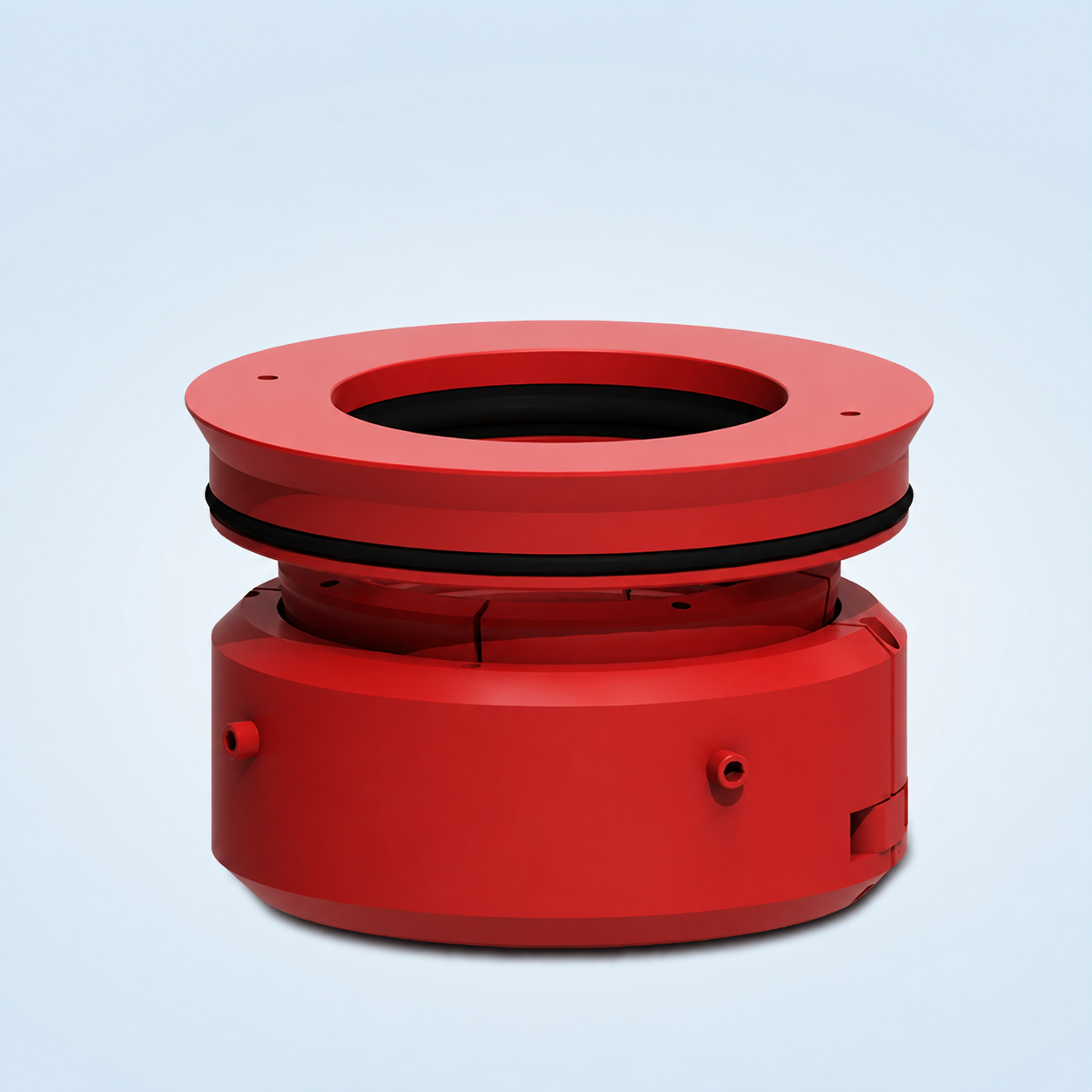

C21 Casing Hanger

Non-automatic slip hanger used with a separately selected packoff.

Light-to-medium casing loads
Separate annulus packoff
C-22/C-29 bowl compatibility subject to verification

View complete technical page ↗

C22 Casing Hanger

Integrated automatic-sealing slip hanger for medium casing loads.

Weight-energised seal
Integrated suspension and packoff
C-22 bowl application

View complete technical page ↗

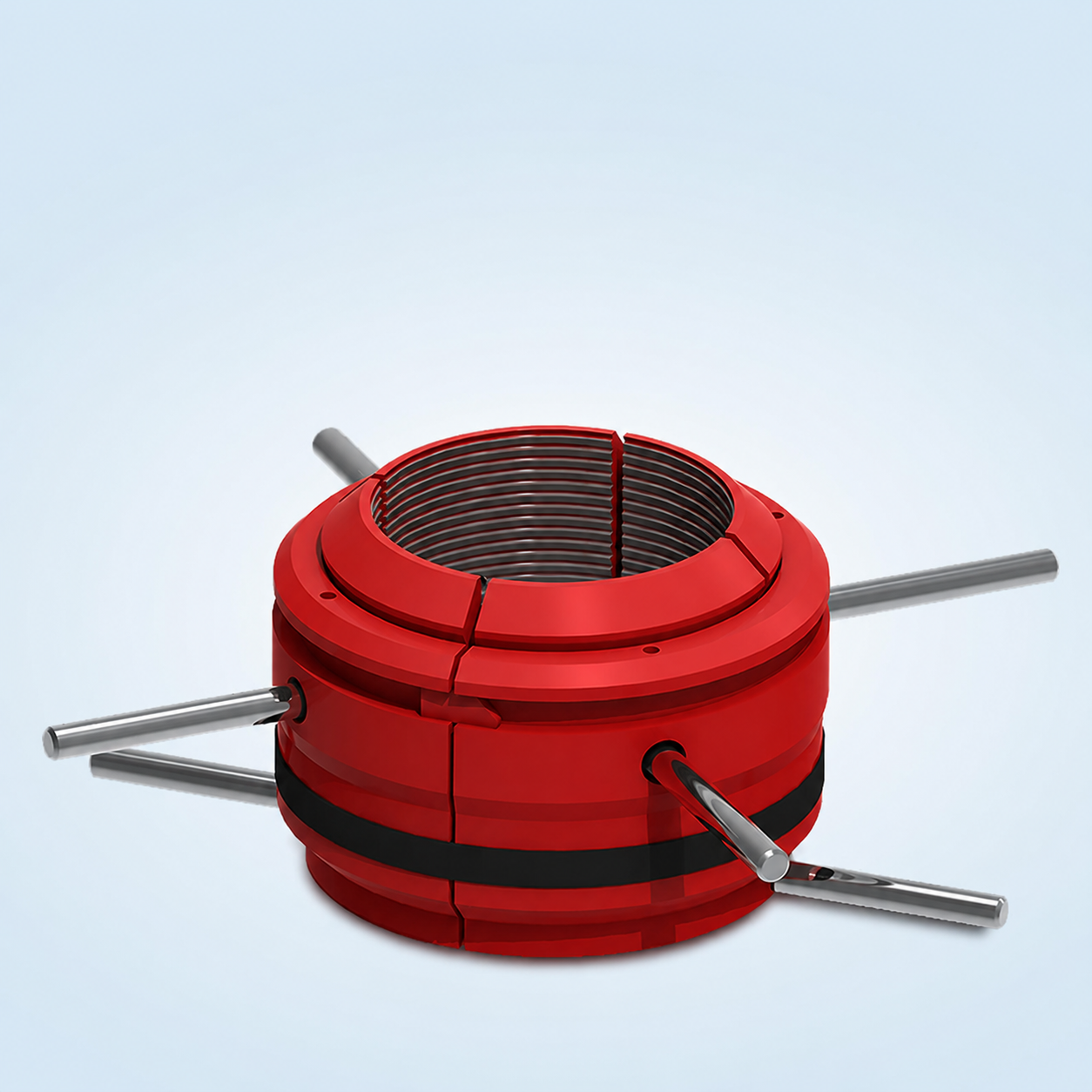

W Casing Hanger

Combined packoff, bowl and slips with automatic sealing.

Medium casing loads
Weight-energised packoff
Matched W-profile bowl

View complete technical page ↗

TECHNICAL REQUIREMENT TABLE

Specification basis

Design basisAPI 6A / ISO 10423, subject to the approved purchase specification

Rated working pressureProject-specific; reference ranges shown where stated by the source product page

Temperature classSelected for the approved operating envelope

Material classSelected for standard, sour or corrosive service

PSL / PRConfirmed from the customer data sheet and applicable API 6A edition

DocumentationApproved drawings, material certificates, pressure-test reports and traceability records as agreed

Selection inputsCasing OD, weight, grade, suspended load and bowl profile

Seal principleIntegral weight-energised packoff or separate packoff, according to type

Values are confirmed against the customer specification. Availability is subject to the approved scope, manufacturer capability and technical review.

TYPICAL APPLICATIONS

Where it is used

Casing head housings
Casing head spools
Multi-string wellhead systems
Oil, gas and injection wells

STANDARDS & DOCUMENTATION

Supply can be reviewed against API 6A / ISO 10423 and other project-specified requirements, where applicable. The agreed documentation package may include material certificates, dimensional records, pressure-test reports, inspection records, certificates of conformity, packing lists and traceability documents.

FOR AN ACCURATE OFFER

Information to include in your enquiry

Equipment name and quantity
Size, bore and working pressure
Temperature and material class
PSL, PR and sour-service requirement
End connections and mating equipment
Datasheet, drawing, nameplate or photograph
Inspection and documentation requirements
Required delivery location and schedule
