WELLHEAD EQUIPMENT

Tubing Hangers

Name: Tubing Hangers
Brand: Energy Equipment International

Tubing hangers suspend the production tubing in the tubing-head bowl and provide the pressure-containing interface between the tubing, annulus, adapter and completion penetrations. The family page groups the four reference types and links to each complete product page.

Request a quote ↗

Representative equipment image. Final configuration is project-specific.

FUNCTION & PURPOSE

What the equipment does

Suspends one or more tubing strings
Seals the tubing-casing annulus
Interfaces with the tubing-head bowl and lockdown screws
Provides the adapter-neck or coupling interface
Accommodates control-line or ESP penetrations where selected

AVAILABLE ARRANGEMENTS

Typical configurations

TC-1A extended-neck hanger
TC-1W split wrap-around packoff
TC-ESP dual-port electrical-feed-through hanger
TC-DC dual-split completion hanger

PRODUCT TYPES & DESIGN OPTIONS

Products in this family.

Each type is reviewed as a separate technical selection. Compatibility, ratings, dimensions, seals and interfaces must be confirmed against the approved wellhead and completion design.

TC-1A Tubing Hanger

Extended-neck hanger for medium-to-heavy tubing loads.

Lockdown-screw energised seal
Optional control-line ports
H-type BPV profile

View complete technical page ↗

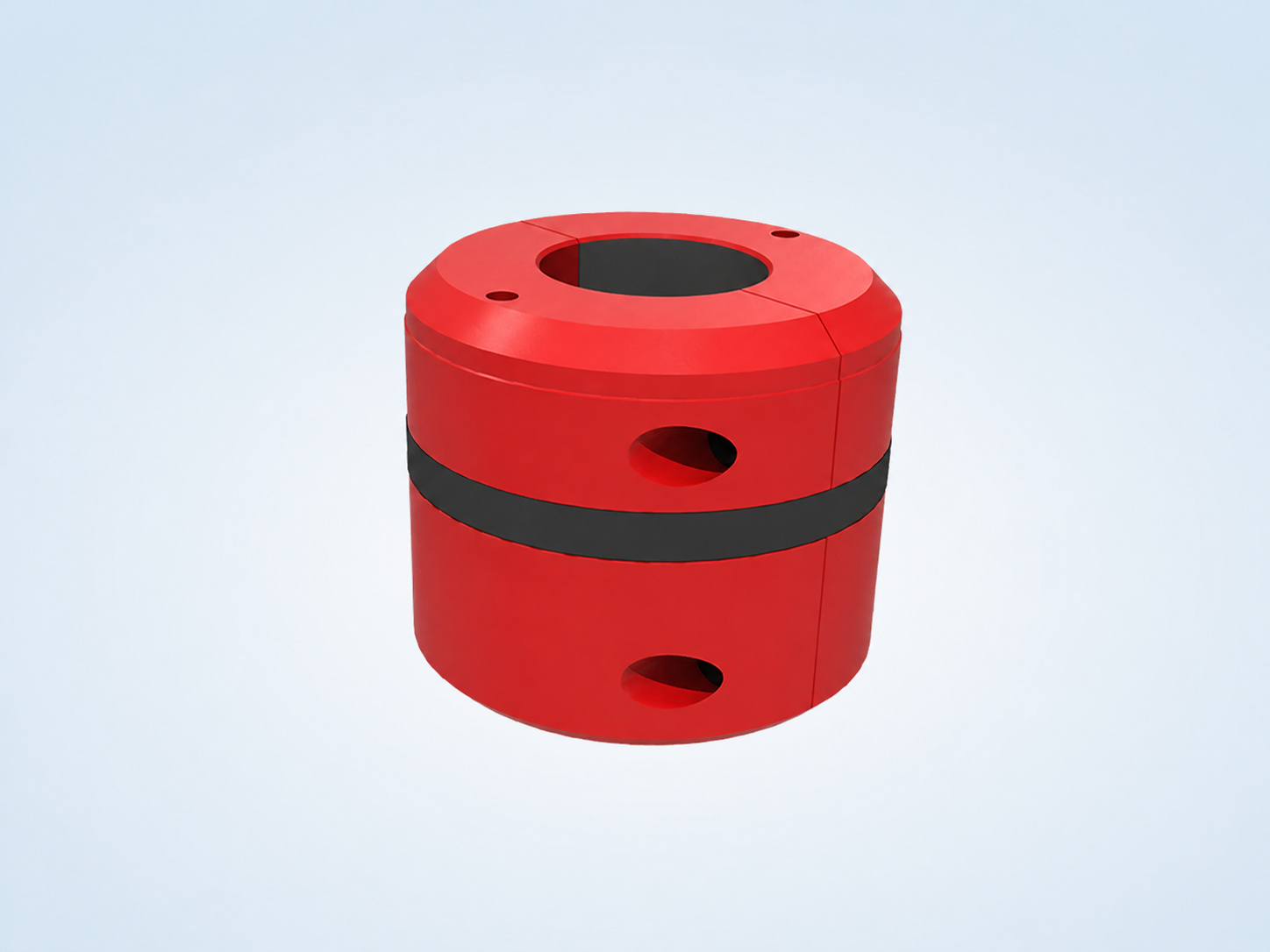

TC-1W Tubing Hanger

Split wrap-around primary packoff for coupling-type suspension.

Wrap-around installation
Lockdown-screw actuation
BO-2/BO-10 completion interface

View complete technical page ↗

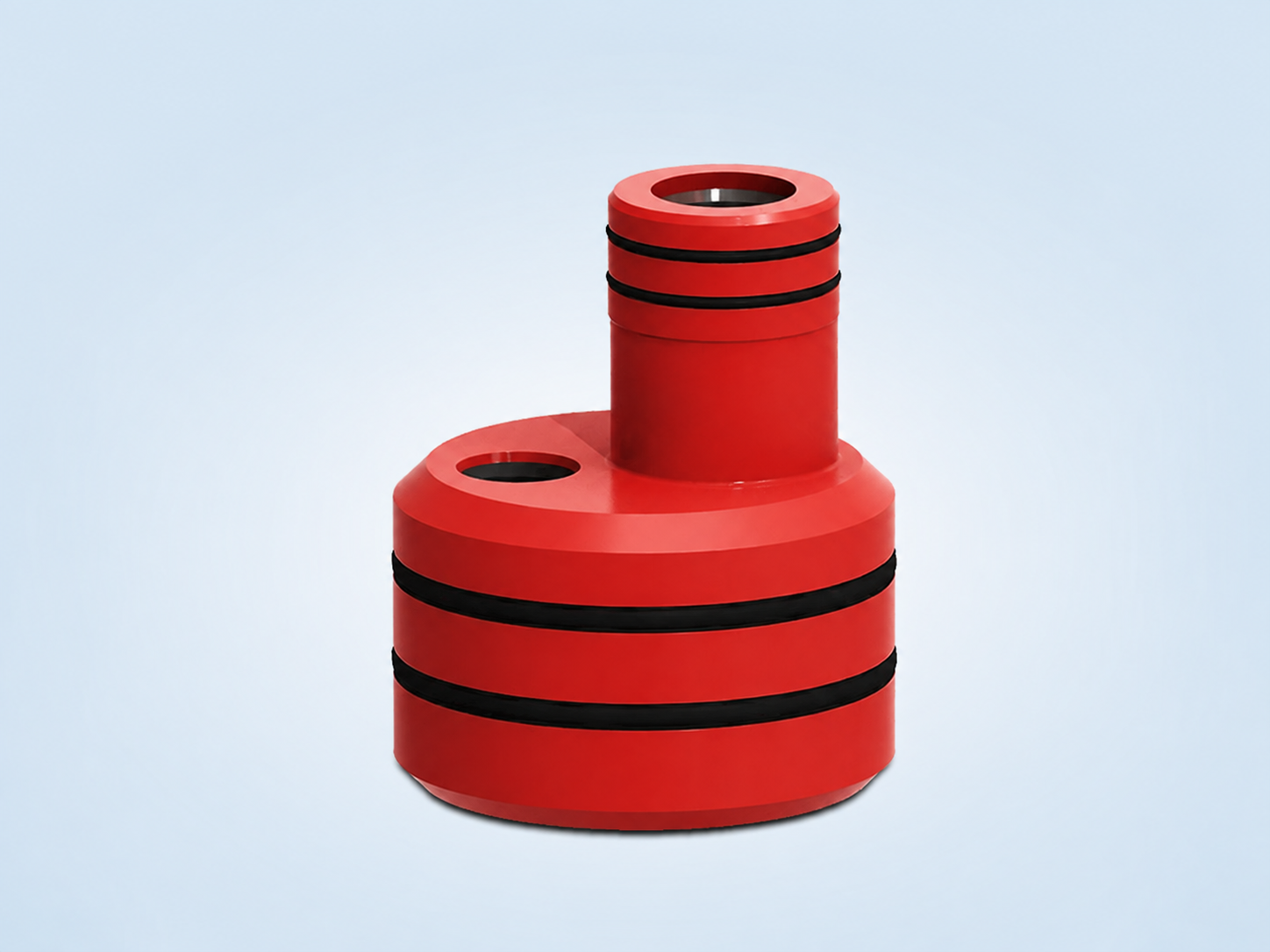

TC-ESP Tubing Hanger

Dual-port hanger for production tubing and electrical feed-through.

Production-tubing bore
ESP conductor port
Matched ESP adapter

View complete technical page ↗

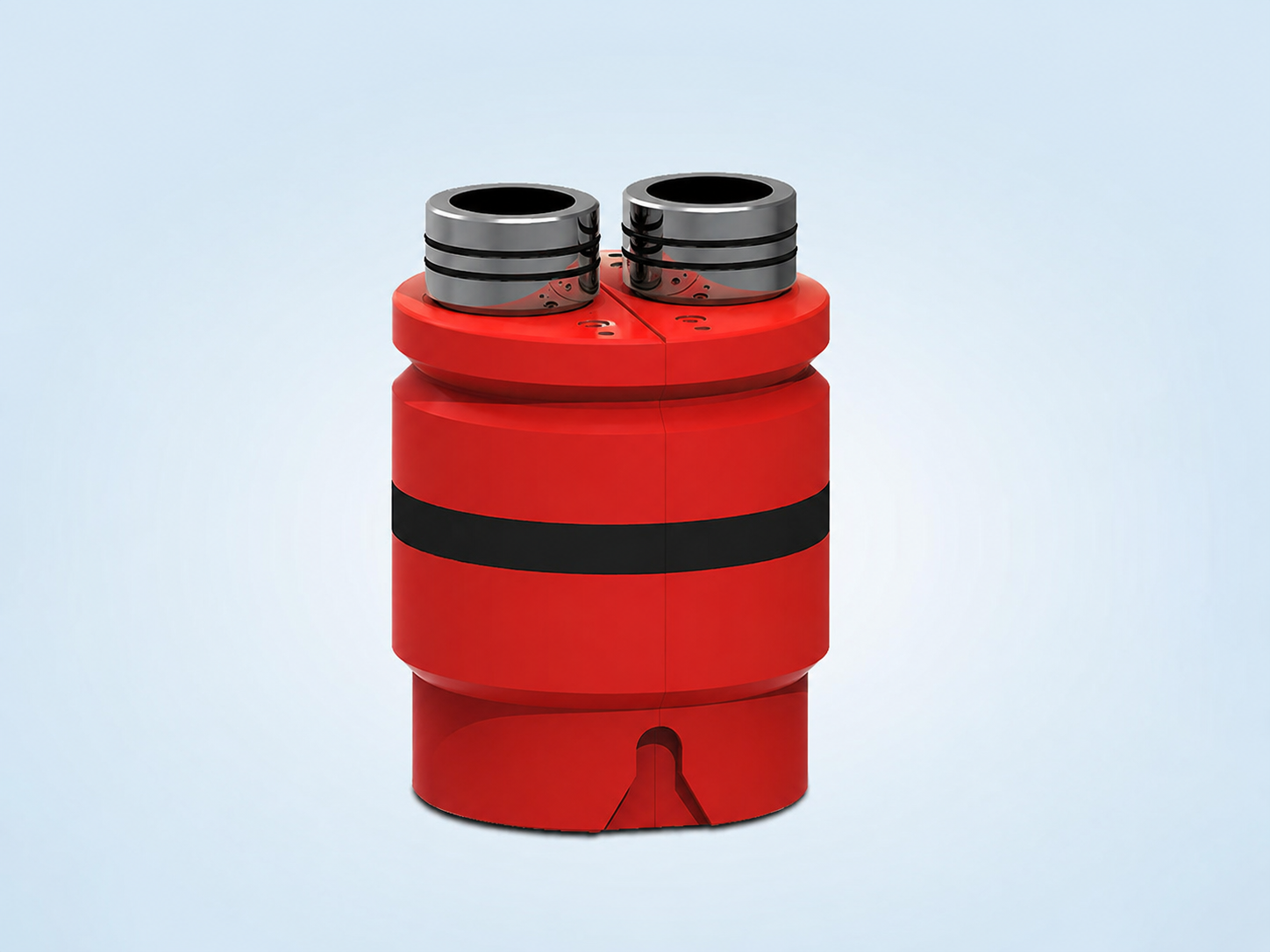

TC-DC Dual-Split Hanger

Split hanger for two tubing strings with an integral packoff.

Two production bores
Integral compression packoff
Set before BOP removal

View complete technical page ↗

TECHNICAL REQUIREMENT TABLE

Specification basis

Design basisAPI 6A / ISO 10423, subject to the approved purchase specification

Rated working pressureProject-specific; reference ranges shown where stated by the source product page

Temperature classSelected for the approved operating envelope

Material classSelected for standard, sour or corrosive service

PSL / PRConfirmed from the customer data sheet and applicable API 6A edition

DocumentationApproved drawings, material certificates, pressure-test reports and traceability records as agreed

Selection inputsTubing size, load, thread, completion type, bowl profile and penetrations

Retention / actuationMatched tubing-head lockdown-screw system

Values are confirmed against the customer specification. Availability is subject to the approved scope, manufacturer capability and technical review.

TYPICAL APPLICATIONS

Where it is used

Conventional completions
Pumping wells
ESP completions
Dual-string completions

STANDARDS & DOCUMENTATION

Supply can be reviewed against API 6A / ISO 10423 and other project-specified requirements, where applicable. The agreed documentation package may include material certificates, dimensional records, pressure-test reports, inspection records, certificates of conformity, packing lists and traceability documents.

FOR AN ACCURATE OFFER

Information to include in your enquiry

Equipment name and quantity
Size, bore and working pressure
Temperature and material class
PSL, PR and sour-service requirement
End connections and mating equipment
Datasheet, drawing, nameplate or photograph
Inspection and documentation requirements
Required delivery location and schedule

TECHNICAL & COMMERCIAL ENQUIRY

Need tubing hangers?

Send the available RFQ, data sheet, drawing, equipment details or photographs. We will review the requirement and respond with any necessary clarification.

Submit your requirement ↗
