Long-sweep manifold fittings use a bend radius typically 2D or greater to reduce turbulence and pressure drop. Equal or reducing elbows, tees and crosses form high-pressure mud, cementing, fracturing and offshore drilling manifolds.
Technical features
Equal and reducing configurations

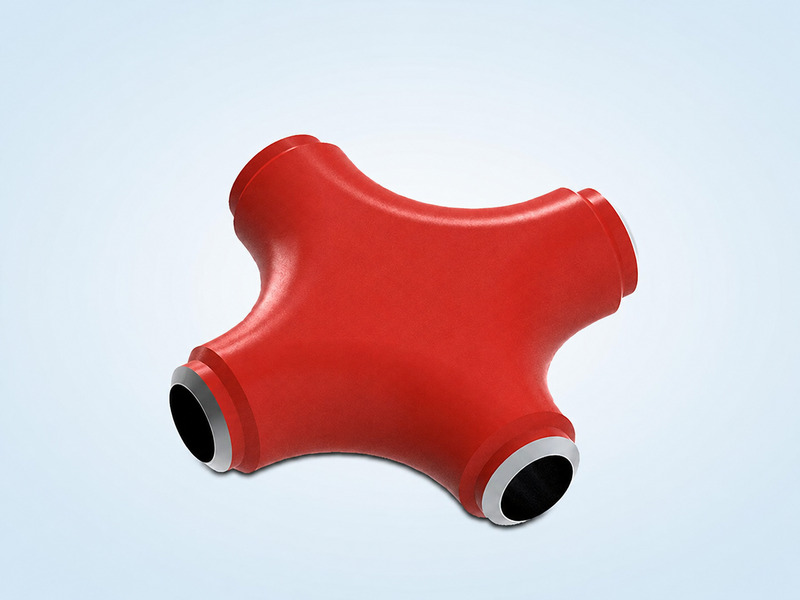

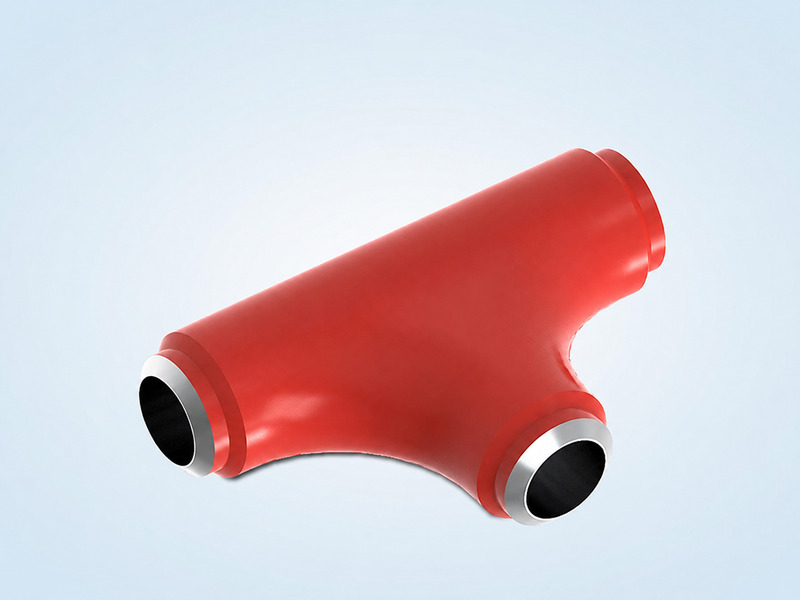

Long-sweep full-flow tee and cross

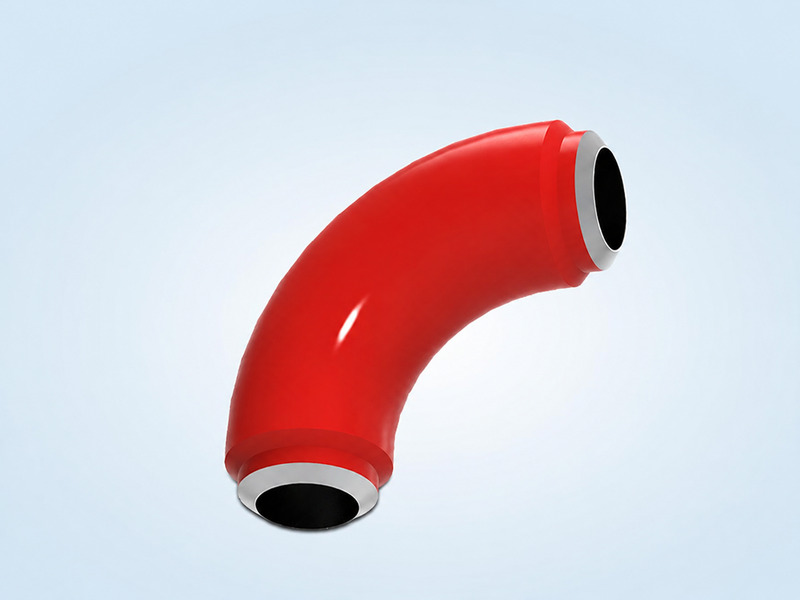

90-degree long-sweep elbow
Standard and special wall schedules
Forged AISI 4130 reference construction
Material strength matched to pressure class
Temperature derating reviewed above 121 °C
Typical applications
Mud standpipe manifolds
Fracturing, cementing and mud systems
Wellhead and tree flow connections
Offshore drilling-fluid circulation
Erosion-sensitive high-velocity lines
TECHNICAL DATA
Selection and supply basis
Working pressure
5,000 / 7,500 / 10,000 / 15,000 psi
Hydrostatic test pressure
7,500 / 11,250 / 15,000 / 22,500 psi respectively
Temperature range
-60 °C to 121 °C reference range
Minimum yield
Over 60,000 psi at 5,000 psi class; over 85,000 psi for higher listed classes
Minimum tensile
85,000 psi at 5,000 psi class; 105,000 psi for higher listed classes
Reference material
AISI 4130
Nominal size
2 in, 3 in or 4 in
Design references
MSS SP-75, ASME B16.9/B31.3/Section VIII, API 6A where applicable and specified, and NACE MR0175 where required
Service
Standard or sour-gas service; final metallurgy and hardness confirmed against the approved fluid data
Temperature basis
Project-selected temperature class; reference range -46 °C to 121 °C where stated
Inspection
Material traceability, dimensional inspection, NDE and hydrostatic/functional testing to the approved ITP
Documentation
Datasheet, drawings, MTRs, NDE and pressure-test records as specified
Supply positioning
Energy Equipment International supplies flowline equipment against approved project requirements. Manufacturing, monogram, certification, interchangeability and performance claims apply only when confirmed in the selected supplier’s approved documentation.
