Integral fittings are forged from a solid piece of alloy steel, removing welded or threaded pressure-boundary joints from the fitting body. Chamfered bores and increased connection-wall thickness help reduce turbulence and local erosion, while removable retainer rings allow union nuts to be replaced.
Technical features
One-piece forged construction
2 in, 3 in and 4 in sizes
Fig 602, Fig 1002 and Fig 1502 connection families
Elbows, tees, crosses, wyes, laterals, crowfoot crosses and integral pup joints
Male and female union-end combinations
Chamfered bore transitions
Replaceable wing nut through removable retainer-ring arrangement
AISI 4130/4140 reference alloy steels with sour-service material controls where required
Typical applications
Fracturing and acidizing
Cementing
Wellhead testing and servicing
Plug-valve choke manifolds
Surface high-pressure manifolds
TECHNICAL DATA
Selection and supply basis
Nominal size
2 in, 3 in or 4 in
Union figure
Fig 602, Fig 1002 or Fig 1502
Rated working pressure
6,000 to 15,000 psi
Temperature reference
-46 °C to 121 °C (LU)
Service
Standard or sour gas
Types
Elbow, tee, cross, wye, lateral, crowfoot cross and pup joint
Construction
One-piece forged alloy steel; final grade and heat treatment by approved design
Service
Standard or sour-gas service; final metallurgy and hardness confirmed against the approved fluid data
Temperature basis
Project-selected temperature class; reference range -46 °C to 121 °C where stated
Inspection
Material traceability, dimensional inspection, NDE and hydrostatic/functional testing to the approved ITP
Documentation
Datasheet, drawings, MTRs, NDE and pressure-test records as specified
Supply positioning
Energy Equipment International supplies flowline equipment against approved project requirements. Manufacturing, monogram, certification, interchangeability and performance claims apply only when confirmed in the selected supplier’s approved documentation.
CONFIGURATIONS & REFERENCE IMAGES
Available types and arrangements

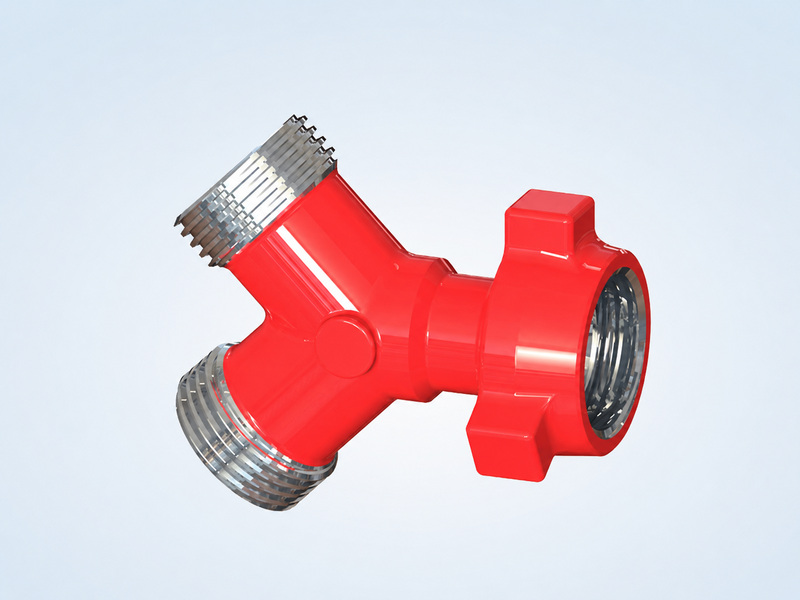

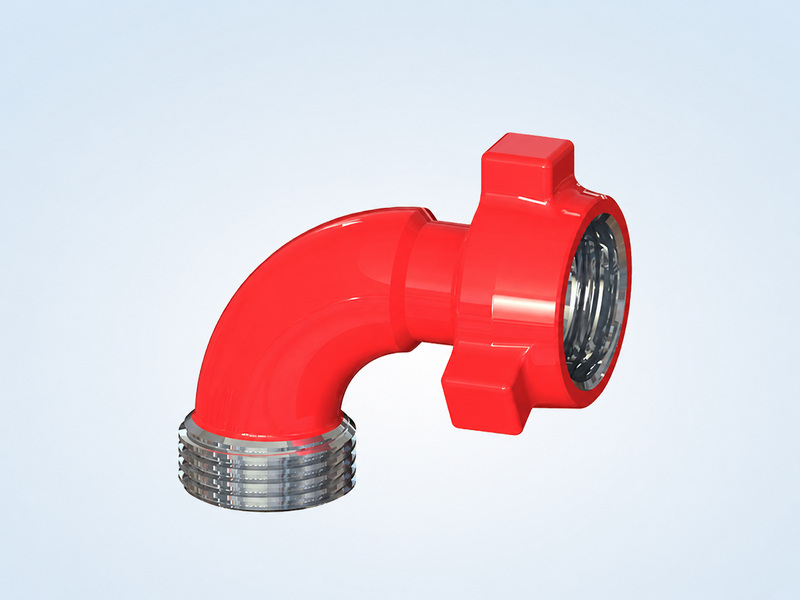

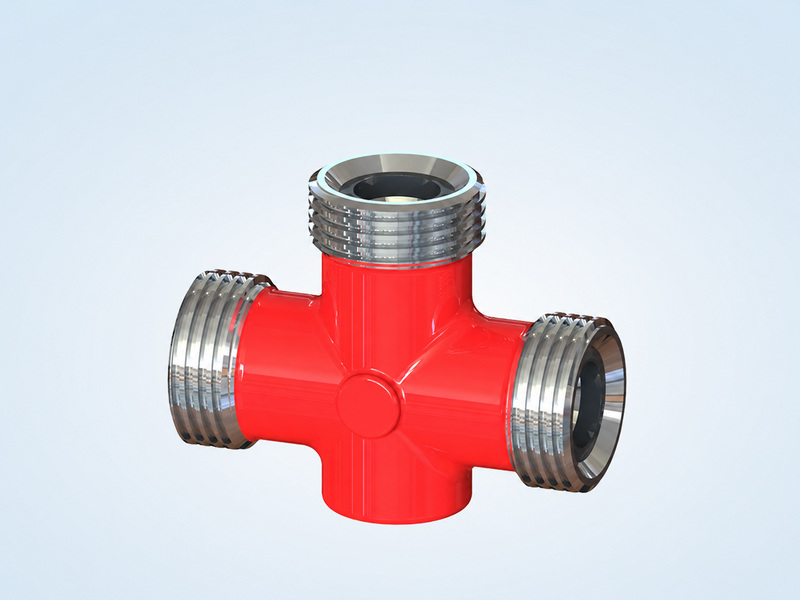

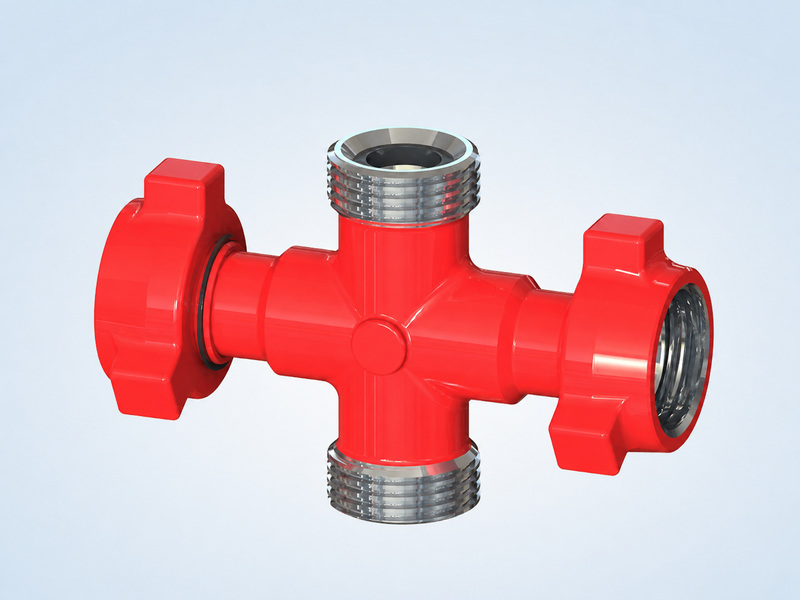

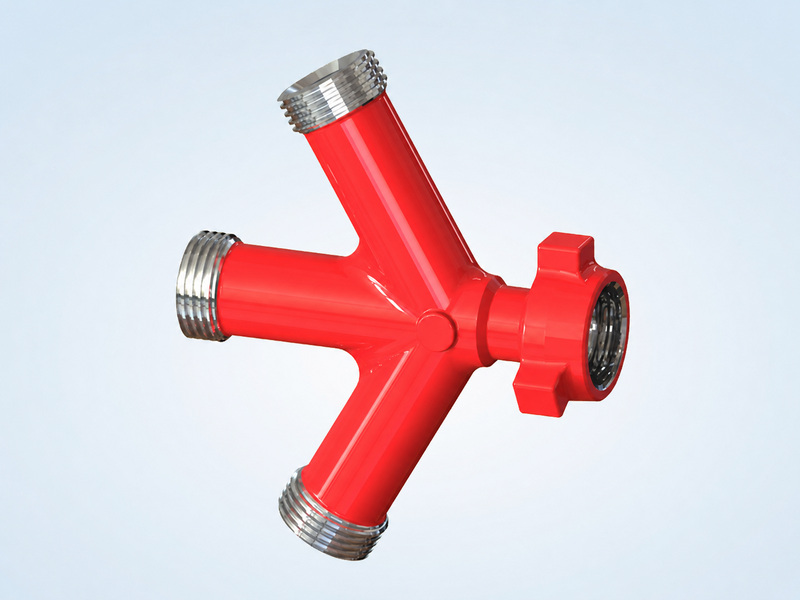

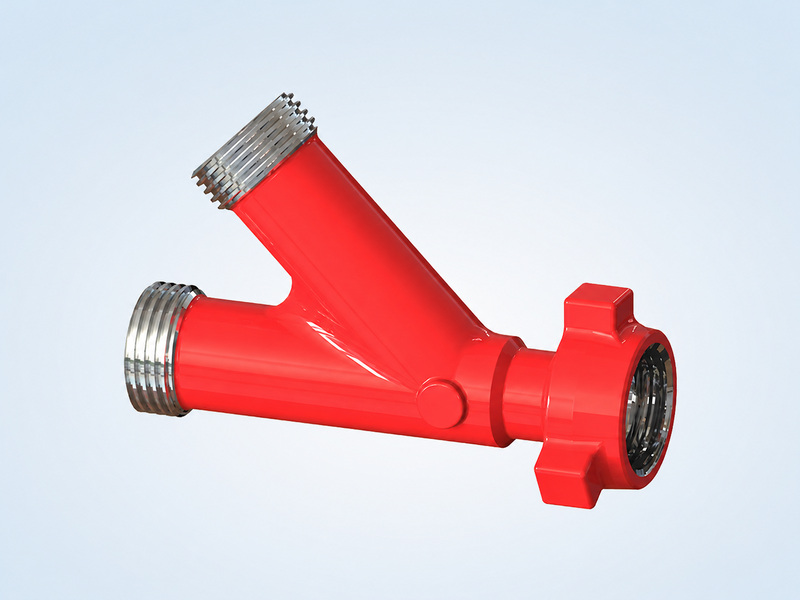

Long-sweep elbow F × MIntegral tee F × F × FIntegral crossIntegral wye tee45-degree lateral teeCrowfoot cross
