Long-sweep swivel joints combine rotatable bearing races with extra-long-radius elbows. Their smooth bore changes flow direction while accommodating rig-up movement, vibration and alignment differences in high-pressure iron.
Technical features
2 in to 4 in nominal sizes
Extra-long-radius elbows for smoother flow
Dual- and triple-race bearing arrangements matched to load and duty
High-nitrile packing and brass-ring options
Threaded, integral wing-union or weld-preparation ends
Flame-hardened, carburized/hardened or snap-in stainless ball-race options

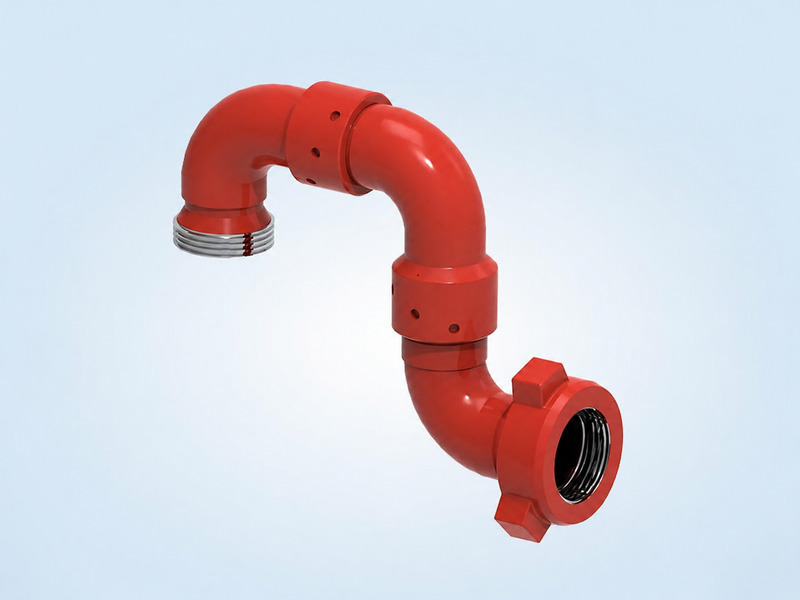

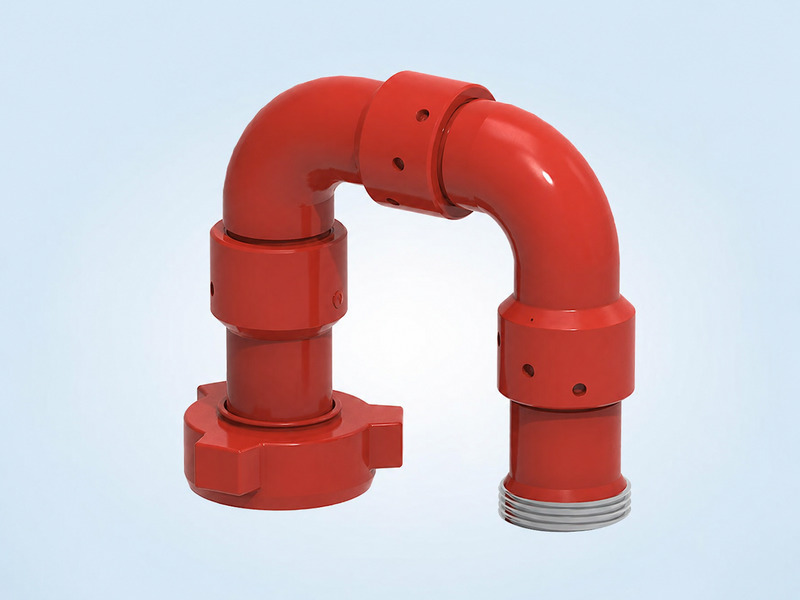

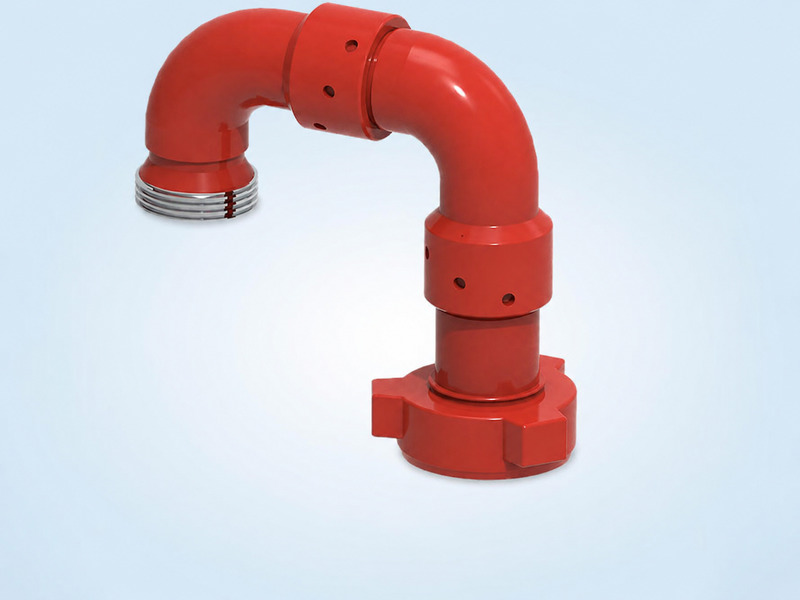

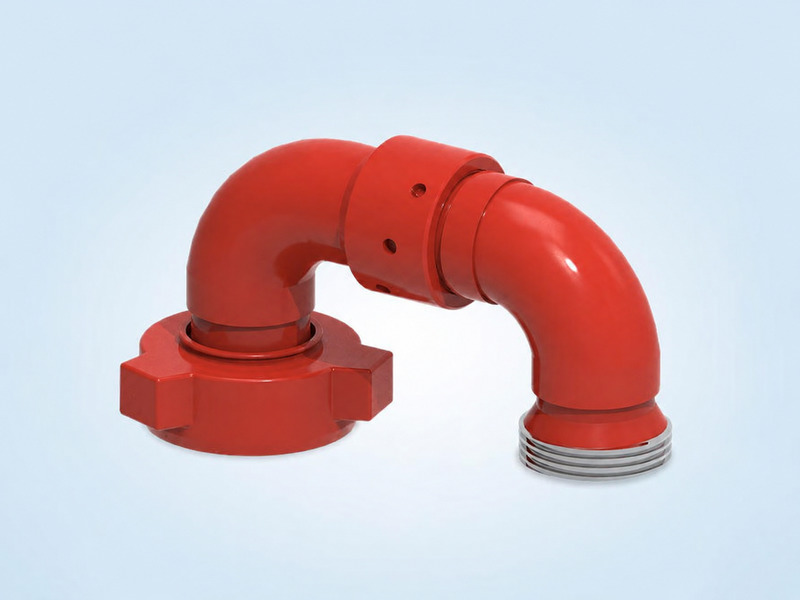

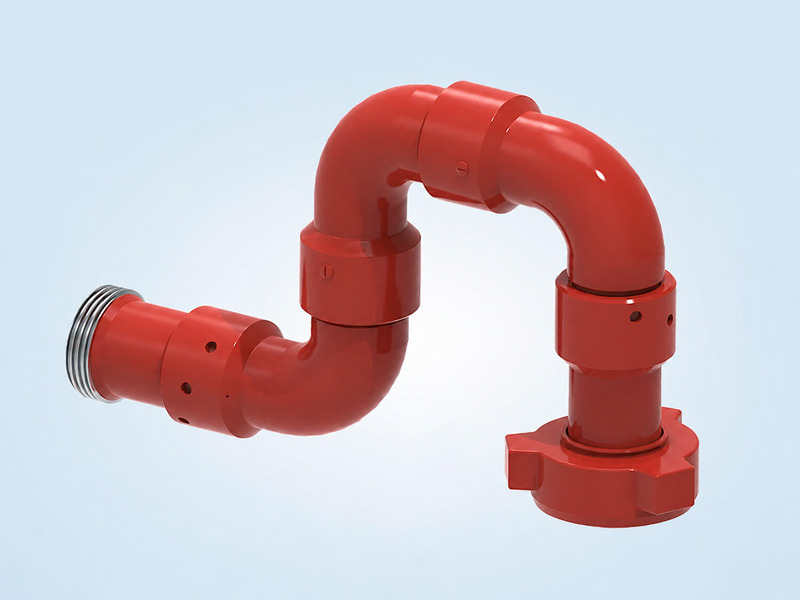

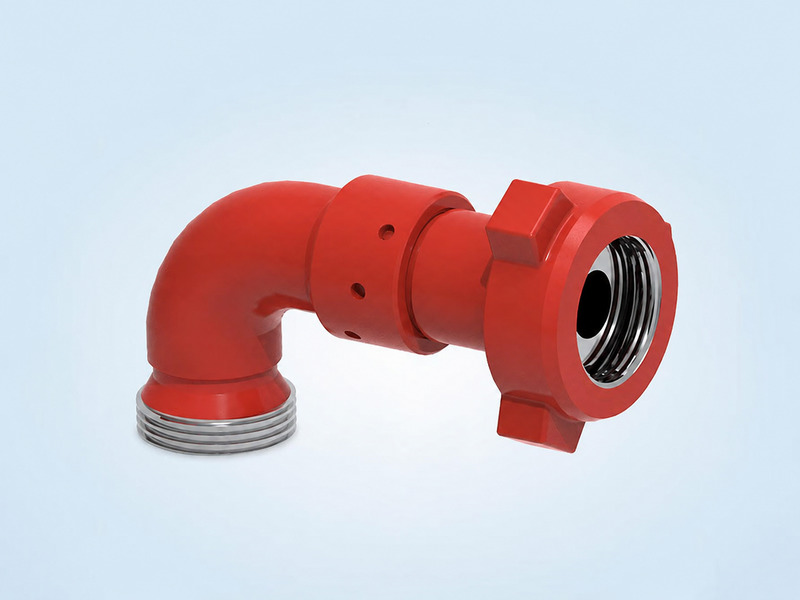

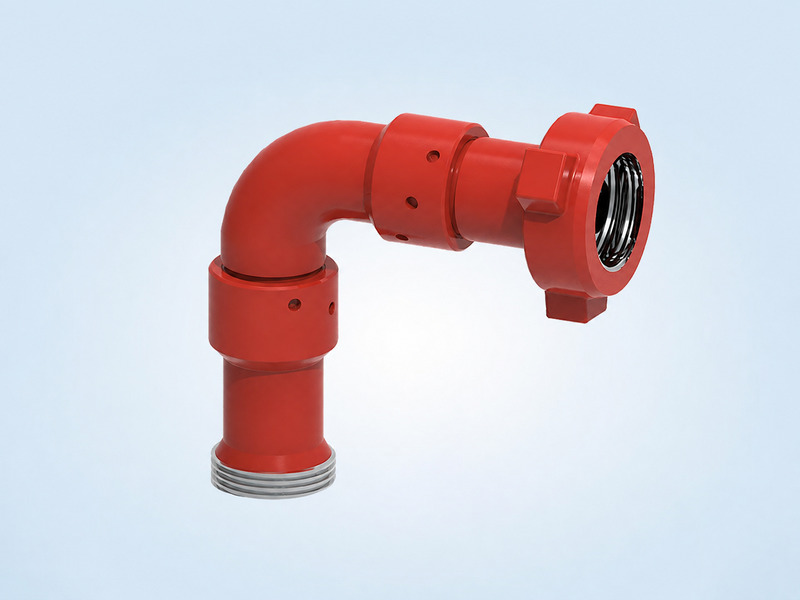

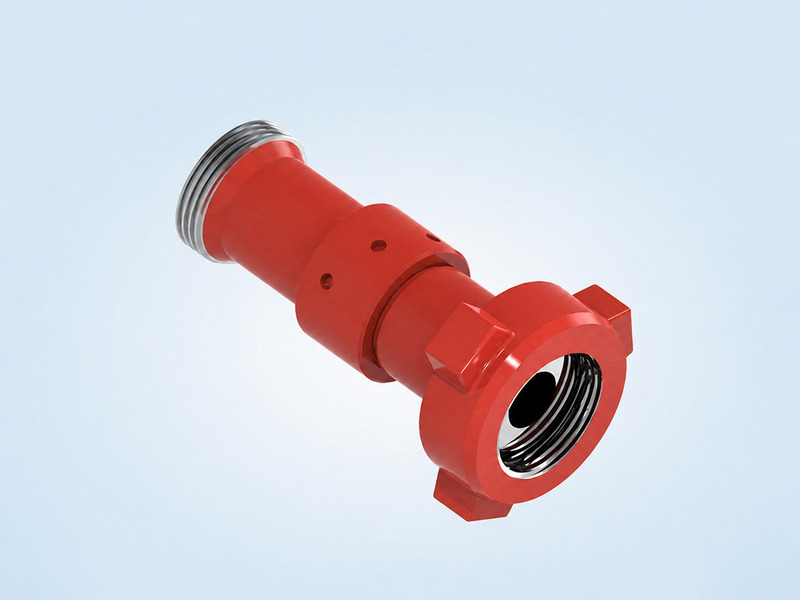

Styles 10, 20, 30, 40, 50, 60, 70, 80 and 100
Typical applications
Fracturing lines
Cementing and acidizing
Choke-and-kill and testing lines
Circulating-hose assemblies
High-pressure temporary piping
TECHNICAL DATA
Selection and supply basis
Nominal size
2 in, 3 in or 4 in
Union figure
Fig 602, Fig 1002 or Fig 1502
Rated working pressure
6,000 to 15,000 psi
Temperature reference
-46 °C to 121 °C (LU)
Service
Standard or sour gas
End connections
Threaded, integral wing union or beveled for welding
Service
Standard or sour-gas service; final metallurgy and hardness confirmed against the approved fluid data
Temperature basis
Project-selected temperature class; reference range -46 °C to 121 °C where stated
Inspection
Material traceability, dimensional inspection, NDE and hydrostatic/functional testing to the approved ITP
Documentation
Datasheet, drawings, MTRs, NDE and pressure-test records as specified
Supply positioning
Energy Equipment International supplies flowline equipment against approved project requirements. Manufacturing, monogram, certification, interchangeability and performance claims apply only when confirmed in the selected supplier’s approved documentation.
