MANIFOLDS & PRESSURE CONTROL

Controlled flow paths.
Defined pressure duty.

Five manifold types for drilling well control, kill-fluid injection, flowback, mud transfer and standpipe distribution. Every arrangement is selected against the approved P&ID, operating envelope and inspection requirements.

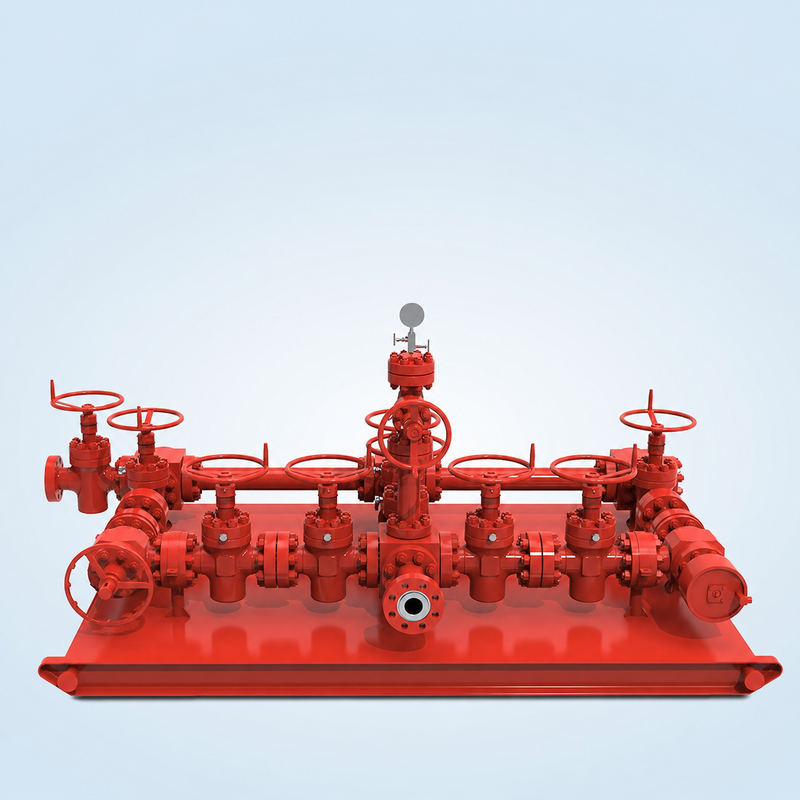

Red API 16C choke manifold on skid
Red Choke Manifold

API 16C / PROJECT-SPECIFIC PACKAGE

Choke Manifold

API 16C pressure-control manifold for routing well returns and controlling backpressure during drilling, well-control circulation, clean-up and testing.

  • Diverts returns away from the normal flowline after BOP closure
  • Controls backpressure during kick circulation
  • Provides selectable flow paths through fixed, manual-adjustable or hydraulic chokes
  • Supports well clean-up, blow-off and surface well-test duties where specified
View technical details ↗

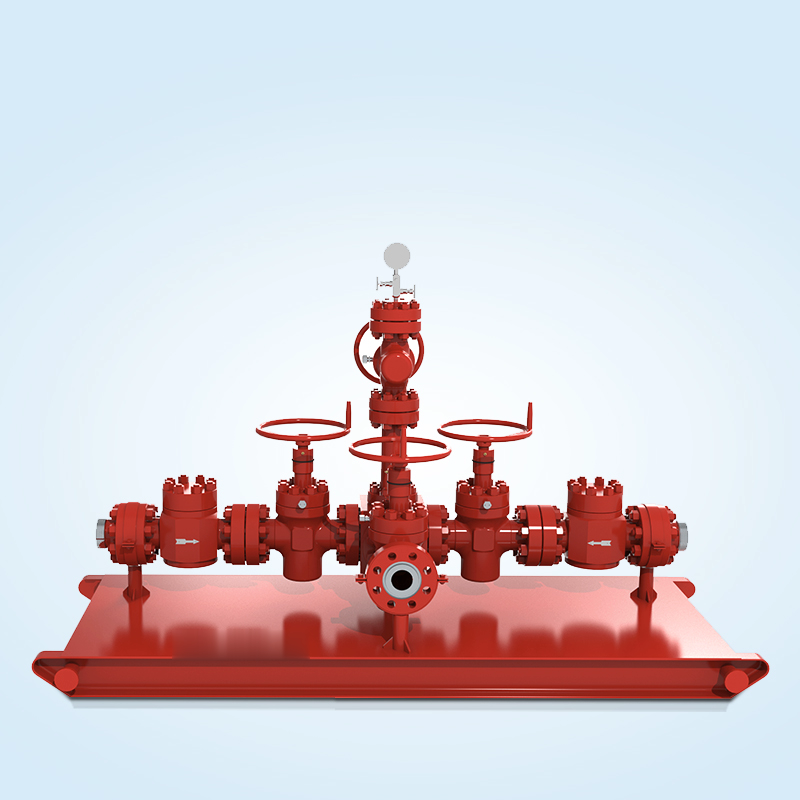

Red Kill Manifold

API 16C / PROJECT-SPECIFIC PACKAGE

Kill Manifold

High-pressure injection manifold used to route kill fluid or heavy drilling slurry into the well and support restoration of pressure balance.

  • Routes kill-weight drilling fluid or other approved treatment fluid into the well
  • Supports pressure balancing and well-control operations
  • Provides redundant isolation where the operating philosophy requires it
  • Uses check-valve protection to limit reverse flow toward pumps
View technical details ↗

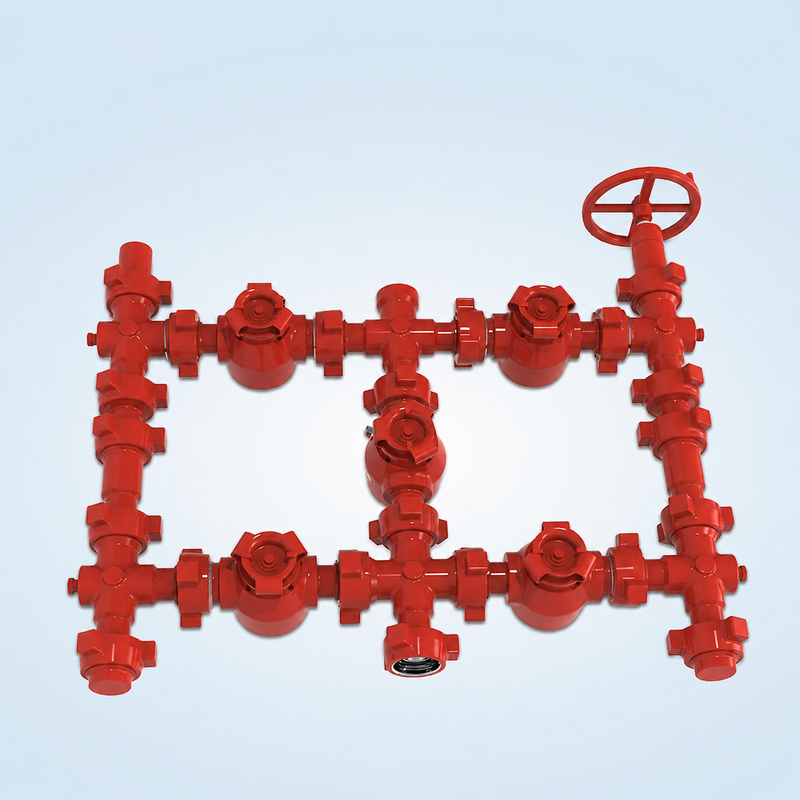

Red Plug Valve Choke Manifold

API 16C / PROJECT-SPECIFIC PACKAGE

Plug Valve Choke Manifold

Compact high-pressure flowback and production manifold using plug valves, adjustable chokes, integral fittings and pressure instrumentation.

  • Selects and isolates alternate high-pressure flow paths
  • Controls flow rate and downstream pressure through adjustable choke trim
  • Supports fracturing and flowback operations
  • Provides local pressure indication
View technical details ↗

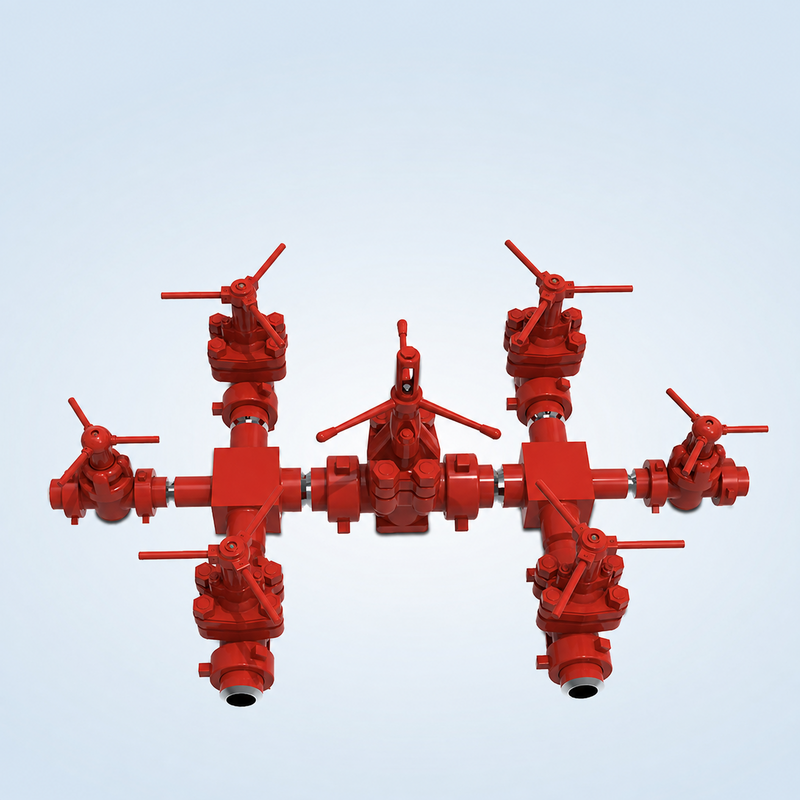

Red Drilling Fluid Manifold

API 16C / PROJECT-SPECIFIC PACKAGE

Drilling Fluid Manifold

Mud-transfer manifold for directing and isolating drilling-fluid flow between mud pumps, tanks, hoses and associated rig equipment.

  • Receives drilling fluid from one or more triplex mud pumps
  • Directs flow toward selected standpipe, rotary-hose or process routes
  • Provides isolation for pumps and downstream lines
  • Supports controlled diversion and pressure management
View technical details ↗

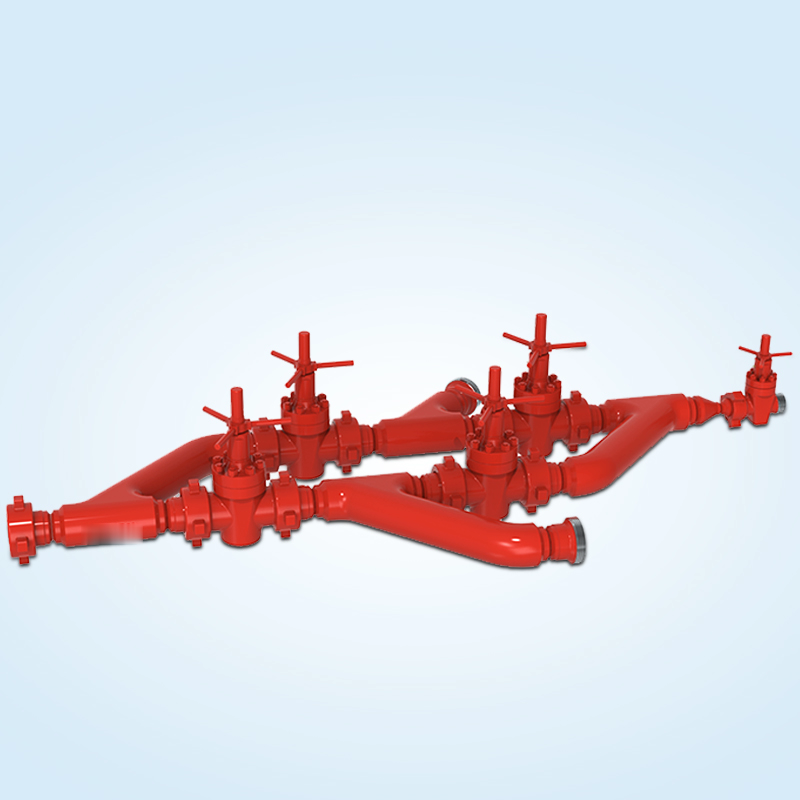

Red Mud Standpipe Manifold

API 16C / PROJECT-SPECIFIC PACKAGE

Mud Standpipe Manifold

High-pressure standpipe manifold that directs mud-pump discharge toward the drill line or drillstring and supports controlled pressure bleed-off.

  • Selects the active standpipe or drill-line route
  • Isolates inactive branches and equipment
  • Directs mud-pump discharge to the drillstring
  • Allows controlled drillpipe-pressure bleed-off where a choke is fitted
View technical details ↗
